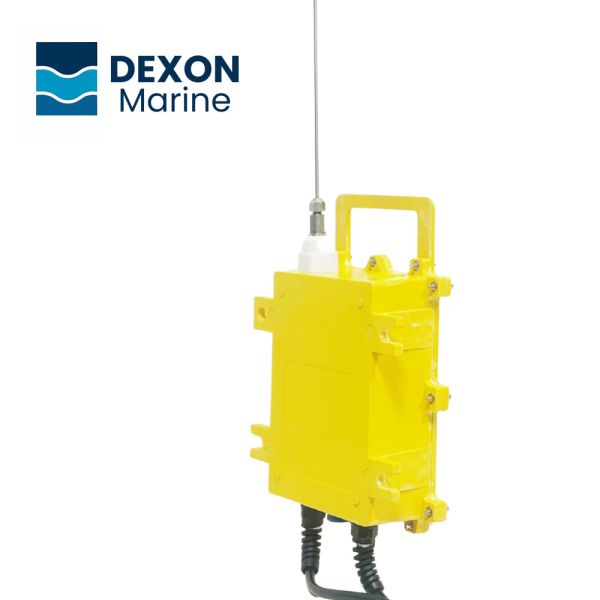

    All In One AIS Based Navigation System Modular AtoN For Ports & Coastal Monitoring

    All-in-one AIS-based navigation system—modular AtoN for
    Ports and Coastal monitoring

    The DX901 delivers signal clarity and transparency regarding the health of the system. It acts as a core element in AIS-based navigation networks. It provides global positioning, status reporting and equipment alerts while using minimal power. It is fully independent and operates without shore-based infrastructure, making it ideal for hard-to-access areas, seasonal installations or long-range autonomous systems.


    All In One AIS Based Navigation System Modular AtoN For Ports & Coastal Monitoring

    Core advantages

    1. Enables real-time monitoring of system health, positioning and status reporting.
    2. Core component of AIS-based navigation and diagnostic networks.
    3. Operates fully autonomously, with no shore-based infrastructure required.
    4. Minimal power consumption ensures long-term operation in remote locations.
    5. Ideal for seasonal buoys, offshore beacons and hard-to-access AtoNs.
    6. Delivers clear, continuous AIS visibility with built-in equipment alerting.

    Technical specification

    CategorySpecificationDetails
    Main features
    Operating VoltageDC 8V–32V, intelligently compatible with DC 12V and 24V
    Average Power ConsumptionContinuous mode ≤1W | Low-power mode ≤0.7W
    Message FormatAdjustable: Message 21, 6, 8, 14; supports multiple formats
    Operating ModesDefault Mode3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA)
    InterfaceRS-232
    Waterproof RatingIP68
    TemperatureOperating:−35°C to +60°C |Storage:−40°C to +70°C
    Environmental Humidity≤99%
    Charing & Load Current≤10A
    AIS features
    Frequency Range156.025MHz – 162.025MHz
    Operating Frequency161.975MHz, 162.025MHz
    ModulationGMSK / FSK
    Frequency Error±0.5kHz
    Transmission Power≤12.5W (Selectable: 6W or 12.5W)
    Receiver Sensitivity≤−110dBm
    Occupied Bandwidth25kHz
    Harmonic/Spurious Suppression≤−70dBc
    Weight/ Size
    Weight≤2kg
    Dimensions281mm × 180mm × 69mm
    Packaging Size500mm × 224mm × 132mm
    Virtual AtoNSupported

    Drawings

    Application

    • Navigation Buoys
    • Lighthouses & Beacons
    • Virtual AtoN
    • Offshore Wind Farms
    • Data Buoys
    • Harbor Entrances & Fairway Control
    • Maritime Administration & Coastal Surveillance
    • Military or Emergency AtoN Deployment

    FAQ

    1, Does it support real-time monitoring?
    Yes. Monitors system health, location, and status in real time.


    2, Is shore-based infrastructure required?
    No. Fully autonomous — ideal for remote or seasonal AtoNs.


    3, How efficient is the power usage?
    Ultra-low power design enables long-term, off-grid operation.


    4, What AIS functionality is included?
    Continuous AIS visibility with built-in equipment alerts.


    5, Where can it be used?
    Perfect for buoys, offshore beacons, and hard-to-reach AtoNs.


    6, What are the size and shipping specs?
    Weight is ≤2kg, product size 281×180×69mm; package 500×224×132mm.
